Customized LED Power Supply Small Power Distribution Box for Lighting

Basic Info.

Model NO.	RB21
Certification	ISO9001:2000, VDE, CCC
Form	All- packaged Type
Operation Voltage	Low Voltage
Size	L359mm*W196mm*H102.5mm
Application Range	Lighting&Charging
Shell Material	PC
Shell Protection Grade	IP54
Brand	See
Light	LED Bulb / E27
Temperature	-30ºC-60ºC
Transport Package	Carton
Specification	L359mm*W196mm*H102.5mm
Trademark	SEE
Origin	Jiangsu, China
Production Capacity	1000000pieces/Year

Product Description

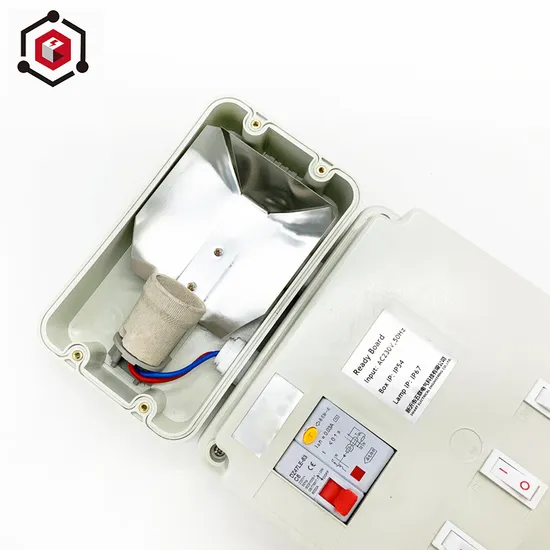

Ready Board SEE-RB21 Small Power Distribution Unit(SPDU)Brief IntroductionSEE-RB21 is a portable, safe, economic and easy to use pre wired low voltage ready board with 2(Two) sockets,1(One) lighting lamp and protection area. It has 4(Four) mounting lugs suitable for wall installation and additional knockout for future use. It is suitable for residential (small holding, extension, garages, outbuildings), commercial and industrial purpose.

Specification
Components

Installation Method & Accessories Factory Show
More Product

Items	Paremeters
Dimension	L359*W196*H102.5mm
Power Input	AC 230V
Socket Type	British Type /Type G
Max Power Output	13A
Lamp Holder	Screw Type E27
RCBO	1 PCS 1P+N 32A/10A/5A
Material of Ready Board	Injection Molded Plastic
Type of Mounting	Wall Mounting / Pole Mounting
No. of Access Points for Conduit or Each Cable	9 at Side
Protection Class	Light Chamber IP67
Temperature	-30ºC to 60ºC
Color	Grey
